Chocolate Melting Tanks for Callets or Blocks

Industrial chocolate melting tank for callets, drops, rework or solid blocks. CMT100â€“CMT1000INS and CBM1000, 100â€“1000 kg, water-jacketed.

الموديلات

السعر

11,000 - 25,000 EUR

اطلب عرض سعر تصدير PDF التفاصيل الفنية

Chocolate Melting Tanks for Callets or Blocks

التفاصيل الفنية

Water-jacketed industrial chocolate melting tanks that melt solid chocolate and hold it at workable temperature for downstream feeding.

The molten chocolate is transferred by an integrated chocolate pump to tempering, forming, or coating equipment.

Two model groups force one decision: input format.

Cylindrical CMT models (CMT100, CMT200, CMT400, CMT600, CMT1000INS) accept callets, drops, and rework.

CMT100â€“200 run on 220 V single-phase.

CMT400 and CMT600 accept 220 V single-phase or 380 V three-phase.

CMT1000INS requires 380 V three-phase and adds glass wool insulation, stainless steel lobe pump, and 1500-micron sieve filter.

The rectangular CBM1000 uses a separate heated melting grid for solid chocolate blocks and requires 380 V three-phase.

Loading solid blocks into a cylindrical CMT model risks agitator motor overload, mechanical impact on the tank bottom, and extended melt cycles.

Loading callets into the CBM1000 means paying for a heated grid designed for solid blocks rather than free-flowing material.

اطلب عرض سعر

المواصفات

الموديلات

CMT100 · 11,000 EUR

Chocolate Melting Tank CMT100

CMT100 compact cylindrical chocolate melting tank for small batches, pilot trials, and manual feeding of callets, drops, or rework. 220 V single-phase. Loading capacity 100 kg. Not rated for solid blocks or batch sizes above 100 kg.

Tank type: Vertical cylindrical chocolate melting tank
Post-melt holding: Supported during downstream feeding
Material: AISI 304 stainless steel
Heating type: Water jacket
Temperature control: PID-controlled
Agitation: Variable-speed; continuous or intermittent mixing
Mobility: On casters
Pump type: Integrated gear-type pump
Accepted input: Callets, drops, rework (not solid blocks)
Loading capacity: 100 kg
Electrical supply: 220 V, single-phase
Total power consumption: 2.4 kW

CMT200 · 13,000 EUR

Chocolate Melting Tank CMT200

CMT200 cylindrical chocolate melting tank for daily batch production of callets, drops, or rework where 100 kg is exhausted within one tempering cycle. 220 V single-phase. Loading capacity 200 kg. Not rated for solid blocks or batch sizes above 200 kg.

Tank type: Vertical cylindrical chocolate melting tank
Post-melt holding: Supported during downstream feeding
Material: AISI 304 stainless steel
Heating type: Water jacket
Temperature control: PID-controlled
Agitation: Variable-speed; continuous or intermittent mixing
Pump type: Integrated gear-type pump
Accepted input: Callets, drops, rework (not solid blocks)
Loading capacity: 200 kg
Electrical supply: 220 V, single-phase
Total power consumption: 3.8 kW

CMT400 · 15,000 EUR

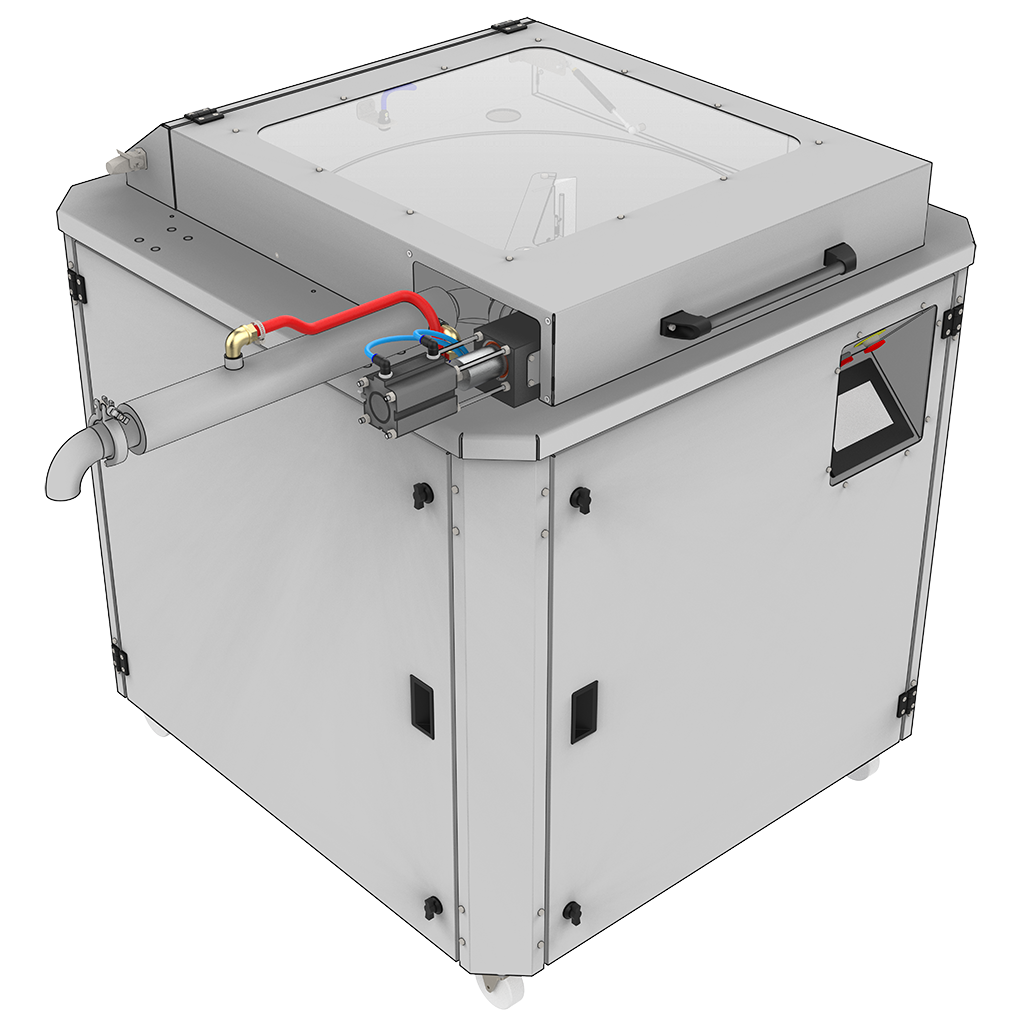

Chocolate Melting Tank CMT400

CMT400 cylindrical chocolate melting tank sized so a single load covers one shift's chocolate consumption up to 400 kg, on lines drawing up to 50 kg/h, without a mid-run refill stop. Accepts callets, drops, or rework. 220 V single-phase or 380 V three-phase supply. Loading capacity 400 kg. Not rated for solid blocks or shift consumption above 400 kg (CMT600 covers that range).

Tank type: Vertical cylindrical chocolate melting tank
Post-melt holding: Supported during downstream feeding
Material: AISI 304 stainless steel
Heating type: Water jacket
Temperature control: PID-controlled
Agitation: Variable-speed; continuous or intermittent mixing
Pump type: Integrated gear-type pump
Accepted input: Callets, drops, rework (not solid blocks)
Loading capacity: 400 kg
Electrical supply: 220 V single-phase or 380 V three-phase
Total power consumption: 4.5 kW

CMT600 · 17,000 EUR

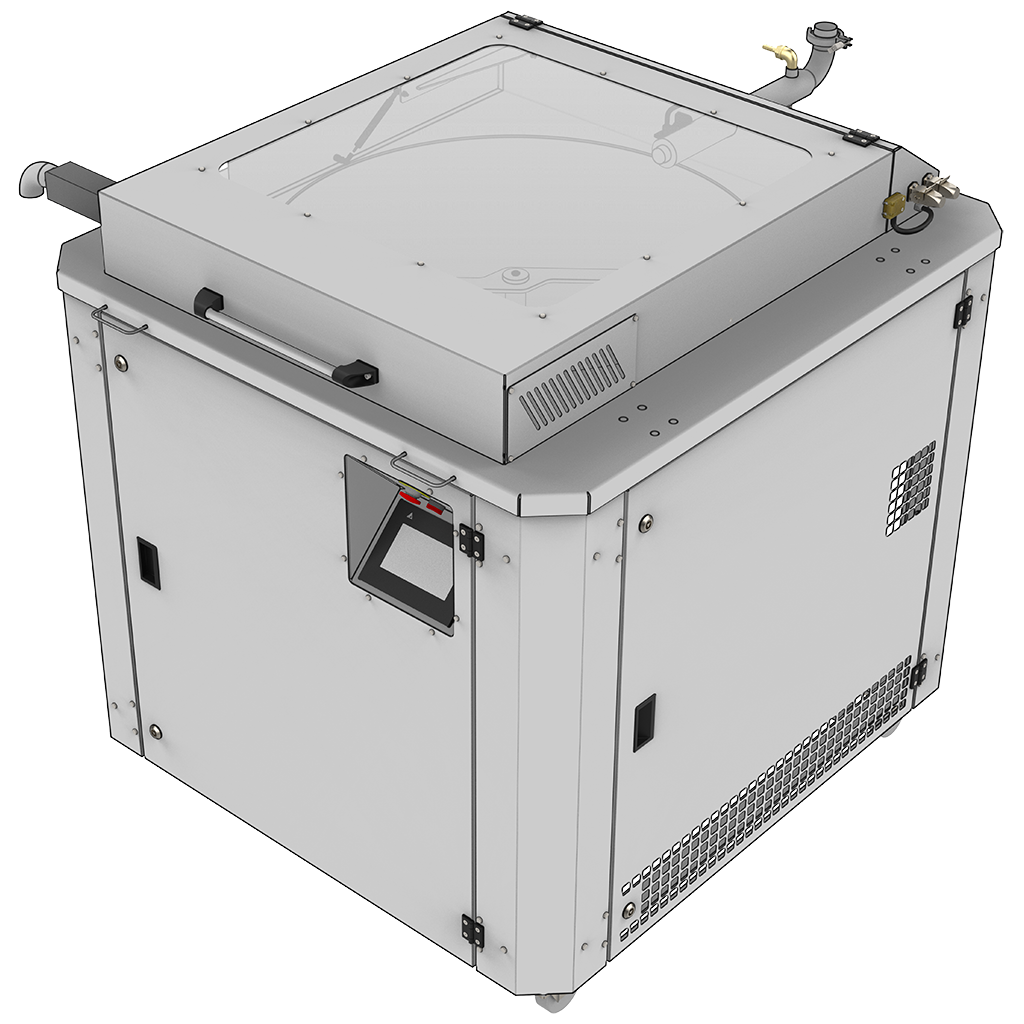

Chocolate Melting Tank CMT600

CMT600 cylindrical chocolate melting tank sized for shifts consuming more than 400 kg of chocolate. The extra 200 kg of buffer above the CMT400 absorbs shift consumption without a mid-run refill stop. Accepts callets, drops, or rework. 220 V single-phase or 380 V three-phase supply. Loading capacity 600 kg. Not insulated; heater duty cycle is higher than CMT1000INS in continuous operation. Not rated for solid blocks or single-load shifts under 400 kg (CMT400 sufficient).

Tank type: Vertical cylindrical chocolate melting tank
Post-melt holding: Supported during downstream feeding
Material: AISI 304 stainless steel
Heating type: Water jacket
Temperature control: PID-controlled
Agitation: Variable-speed; continuous or intermittent mixing
Pump type: Integrated gear-type pump
Accepted input: Callets, drops, rework (not solid blocks)
Loading capacity: 600 kg
Electrical supply: 220 V single-phase or 380 V three-phase
Total power consumption: 5.5 kW

CMT1000INS · 23,000 EUR

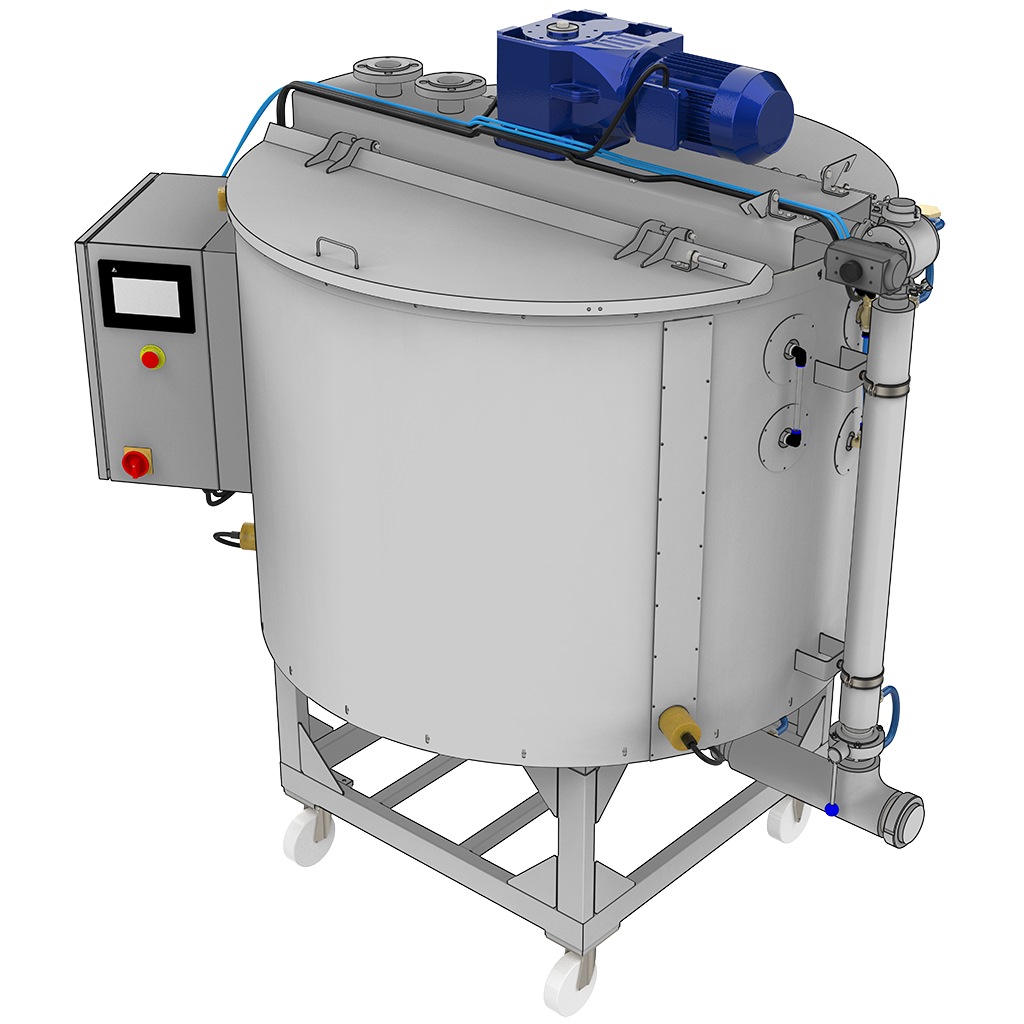

Insulated Chocolate Melting Tank CMT1000INS

CMT1000INS insulated chocolate melting tank for high-volume callet melting on continuous lines. Glass wool insulation around the water jacket lowers heater duty cycle during continuous operation. Stainless steel lobe pump and 1500-micron sieve filter standard. Two standard inlet fittings for bypass return and upstream feed. 380 V three-phase required. Loading capacity 1000 kg. Not rated for solid blocks; not available on single-phase supply.

Tank type: Vertical cylindrical chocolate melting tank
Post-melt holding: Supported during downstream feeding
Material: AISI 304 stainless steel
Heating type: Water jacket
Insulation: Glass wool insulation around the water jacket. Heater duty cycle drops during continuous operation, reducing energy consumption and waste heat.
Temperature control: PID-controlled
Agitation: Variable-speed; continuous or intermittent mixing
Filter: 1500 micron sieve filter
Pump type: Stainless steel lobe-type pump
Inlet fittings: Two standard: bypass return and upstream feed
Accepted input: Callets, drops, rework (not solid blocks)
Loading capacity: 1000 kg
Electrical supply: 380 V, three-phase
Total power consumption: 12.7 kW

CBM1000 · 25,000 EUR

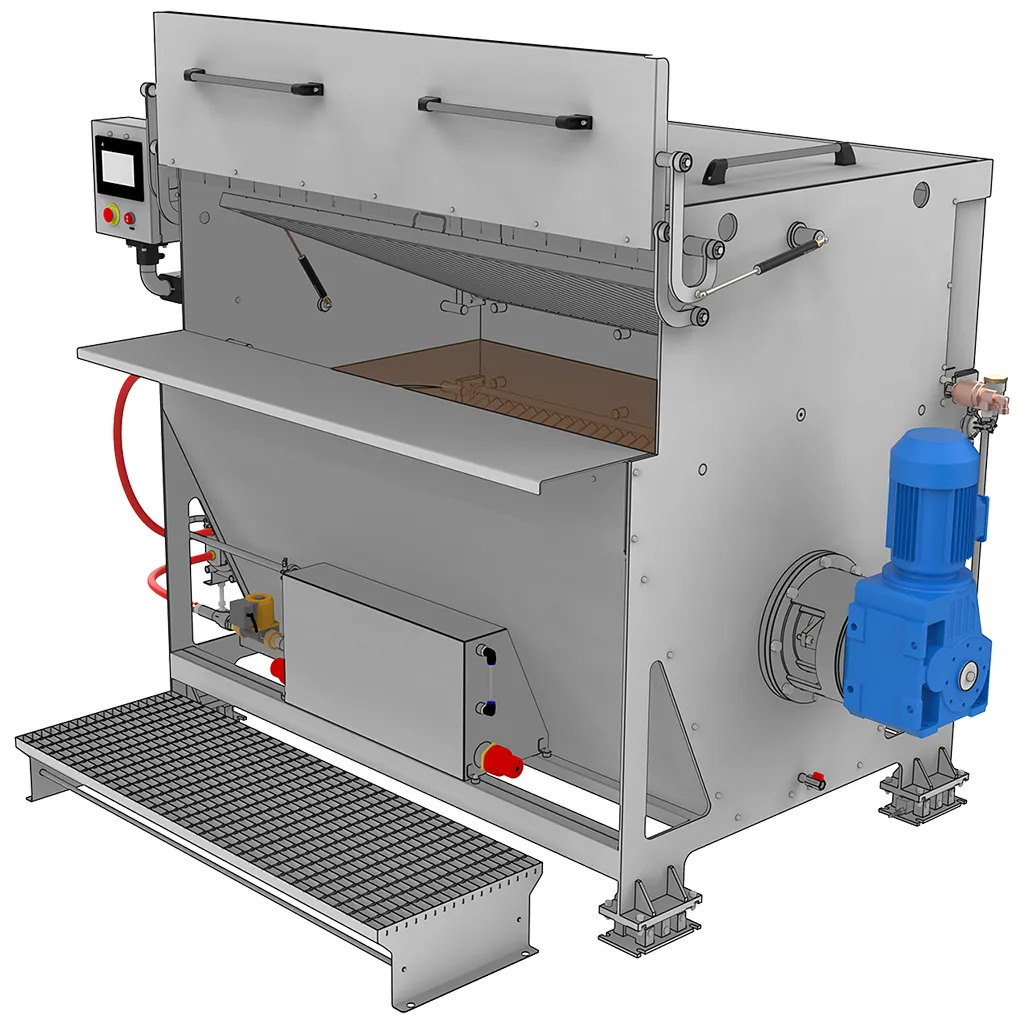

Chocolate Block Melter CBM1000

CBM1000 chocolate block melter for direct loading of solid chocolate blocks where pre-cutting or callet feeding is not practical. Rectangular reservoir with horizontal agitator and a separate heated melting grid that applies heat at the block surface. Glass wool insulated. 380 V three-phase required. Loading capacity 1000 kg. Not optimised for callet-only operations; not available on single-phase supply.
