Batch Liquid Chocolate Conching Machines (VMC Series & HMC1000)

Batch liquid chocolate conching machines from 100 to 1000 kg per batch. Select by batch size, vertical or horizontal agitation, and production style. Conditions refined chocolate after the ball mill refiner.

الموديلات

السعر

15,000 - 42,000 EUR

اطلب عرض سعر تصدير PDF التفاصيل الفنية

Batch Liquid Chocolate Conching Machines (VMC Series & HMC1000)

التفاصيل الفنية

Five batch liquid chocolate conche models, 100 to 1000 kg per batch.

Selection rule: pick the smallest model whose nominal capacity meets the required batch.

220 V single-phase available only on VMC100 and VMC200 (200 kg ceiling).

VMC400 and VMC600 accept either 220 V single-phase or 380 V three-phase.

HMC1000 requires 380 V three-phase.

Vertical VMC models are caster-mounted and suit multi-recipe production with ~13 h cycle.

Horizontal HMC1000 is fixed installation with lobe pump, sieve filter, and load cells, suited to single-recipe industrial production.

Conches do not reduce particle size â€” input must be already refined to 18â€“25 Âµm.

اطلب عرض سعر

المواصفات

الموديلات

VMC100 · 15,000 EUR

Vertical Batch Liquid Chocolate Conche VMC100

Vertical batch liquid chocolate conche for artisan producers and pilot plants â€” 100 kg per batch on 220 V single-phase. Caster-mounted, orbital agitation, water-jacketed PID heating, adjustable air extraction, gear pump. Typical conching cycle ~13 h, recipe dependent. Move to VMC200 when required batch exceeds 100 kg. Conditions refined chocolate mass after the ball mill refiner; does not reduce particle size.

Type: Vertical batch liquid conche
Mixing principle: Orbital agitation
Heating: Water-jacketed with heating element
Temperature control: PID controlled
Air extraction: Adjustable air suction
Pump: Gear-type pump
Process time: Approx. 13 hr
Loading capacity: 100 kg
Material: AISI 304 stainless steel
Electrical supply: 220V single-phase
Installed power: 3 kW

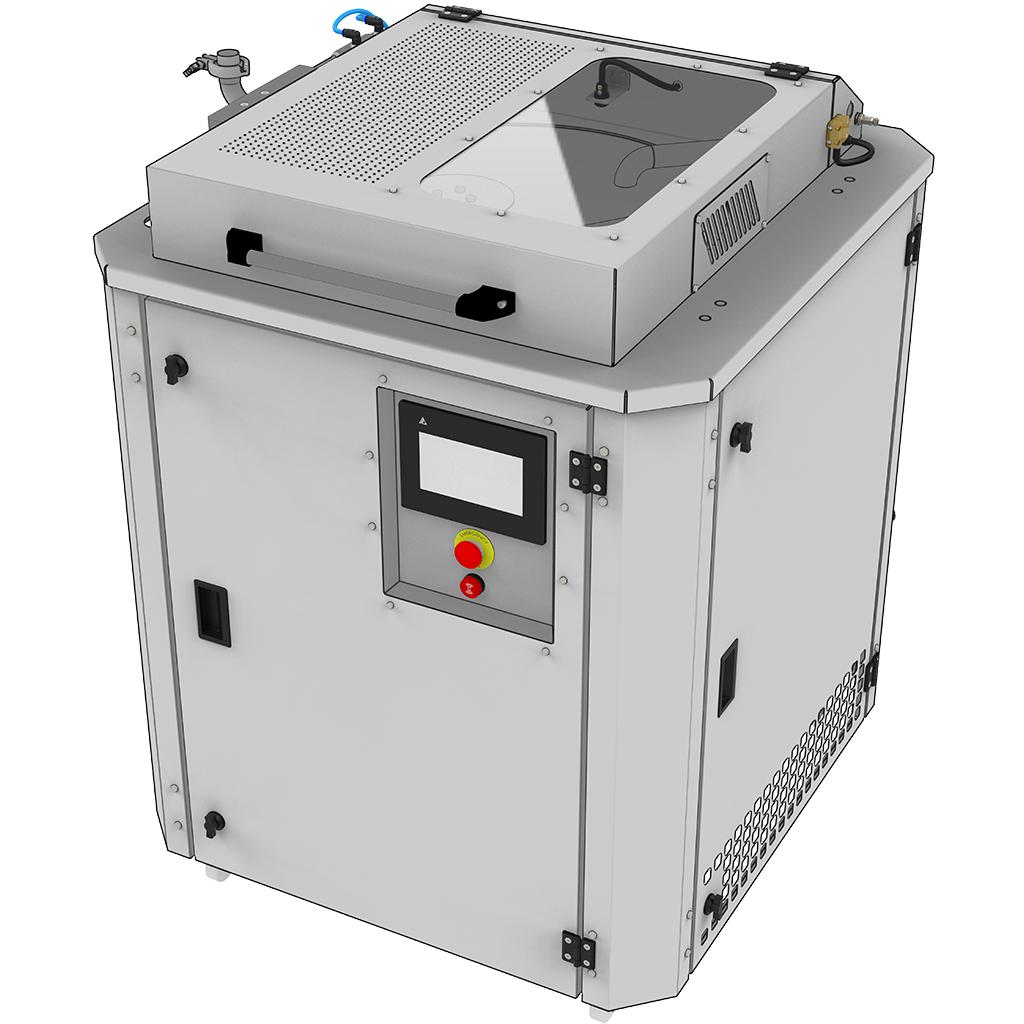

VMC200 · 17,000 EUR

Vertical Batch Liquid Chocolate Conche VMC200

Vertical batch liquid chocolate conche â€” 200 kg per batch on 220 V single-phase. Last 220 V-only model in the range; the next step requires three-phase capability. Caster-mounted, orbital agitation, water-jacketed PID heating, adjustable air extraction, gear pump. Typical conching cycle ~13 h, recipe dependent. Move to VMC400 when required batch exceeds 200 kg.

Type: Vertical batch liquid conche
Mixing principle: Orbital agitation
Heating: Water-jacketed with heating element
Temperature control: PID controlled
Air extraction: Adjustable air suction
Pump: Gear-type pump
Loading capacity: 200 kg
Material: AISI 304 stainless steel

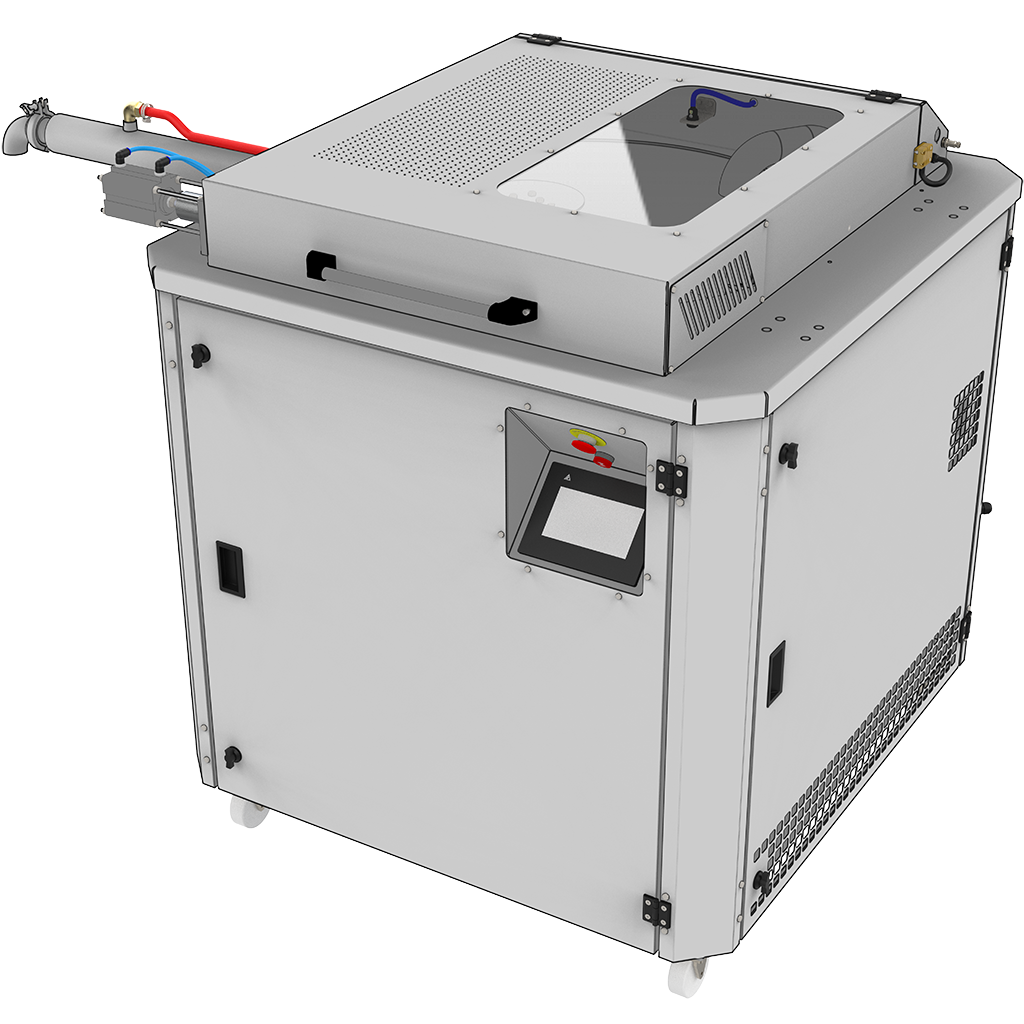

VMC400 · 19,000 EUR

Vertical Batch Liquid Chocolate Conche VMC400

Vertical batch liquid chocolate conche â€” 400 kg per batch with dual electrical supply (220 V single-phase or 380 V three-phase). Caster-mounted, orbital agitation, water-jacketed PID heating, adjustable air extraction, gear pump. Typical conching cycle ~13 h, recipe dependent. Move to VMC600 when required batch exceeds 400 kg.

Type: Vertical batch liquid conche
Mixing principle: Orbital agitation
Heating: Water-jacketed with heating element
Temperature control: PID controlled
Air extraction: Adjustable air suction
Pump: Gear-type pump
Loading capacity: 400 kg
Material: AISI 304 stainless steel

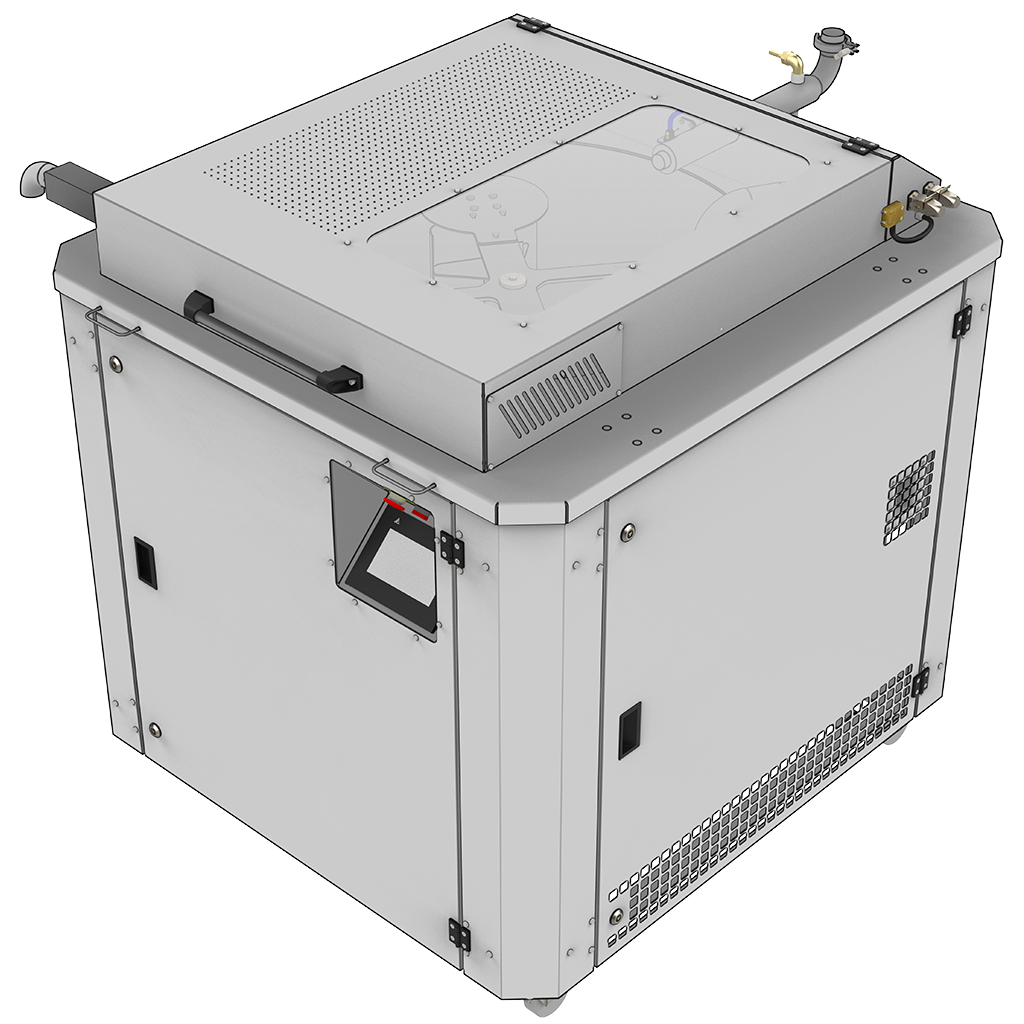

VMC600 · 21,000 EUR

Vertical Batch Liquid Chocolate Conche VMC600

Largest vertical batch liquid chocolate conche in the range â€” 600 kg per batch with dual electrical supply (220 V single-phase or 380 V three-phase). Caster-mounted, orbital agitation, supports recipe changeovers between batches. Typical conching cycle ~13 h, recipe dependent. Move to HMC1000 when required batch exceeds 600 kg. VMC600 suits multi-recipe production; choosing it for single-recipe high-volume production limits throughput because each batch remains isolated, while HMC1000 with closed-loop circulation runs the same recipe continuously.

Type: Vertical batch liquid conche
Mixing principle: Orbital agitation
Heating: Water-jacketed with heating element
Temperature control: PID controlled
Air extraction: Adjustable air suction
Pump: Gear-type pump
Loading capacity: 600 kg
Material: AISI 304 stainless steel

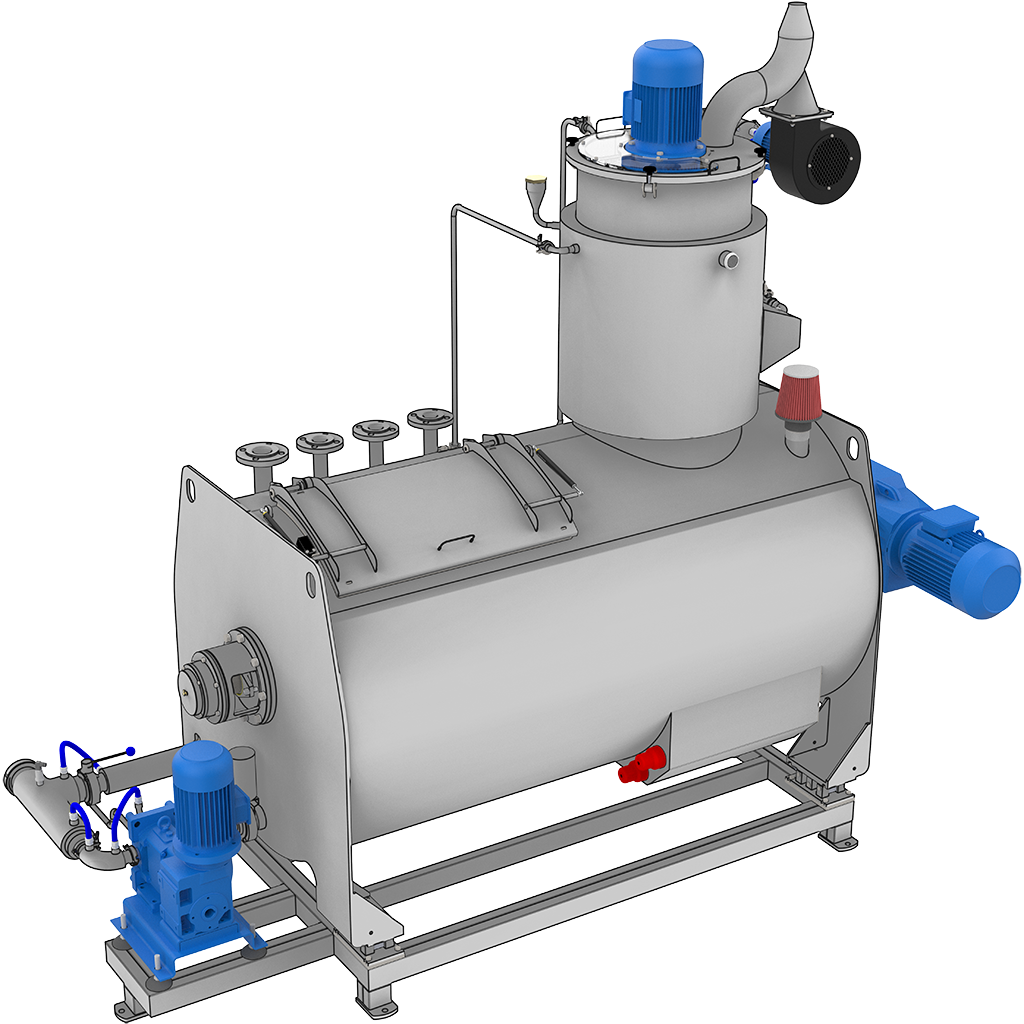

HMC1000 · 42,000 EUR

Horizontal Batch Liquid Chocolate Conche HMC1000

Horizontal batch liquid chocolate conche â€” 1000 kg per batch on 380 V three-phase, fixed industrial installation. Horizontal agitation with splashing disk and forced air extraction, lobe pump with sieve filter, load cells, closed-loop circulation or direct transfer to storage tank. Operator-controlled cycle time. Requires 380 V three-phase supply. Choose HMC1000 only when production exceeds 600 kg per batch or the same recipe runs continuously. Frequent recipe changes remove its throughput advantage because full clean-out becomes required.

Type: Horizontal batch liquid conche
Agitation: Horizontal agitation with variable mixing speed
Chocolate conditioning: Splashing and air extraction for volatile removal
Temperature control: PID controlled heating
Operation mode: Closed-loop circulation or transfer to storage tank
Weighing: Load cells
Loading capacity: 1000 kg
Electrical supply: 380V three-phase
